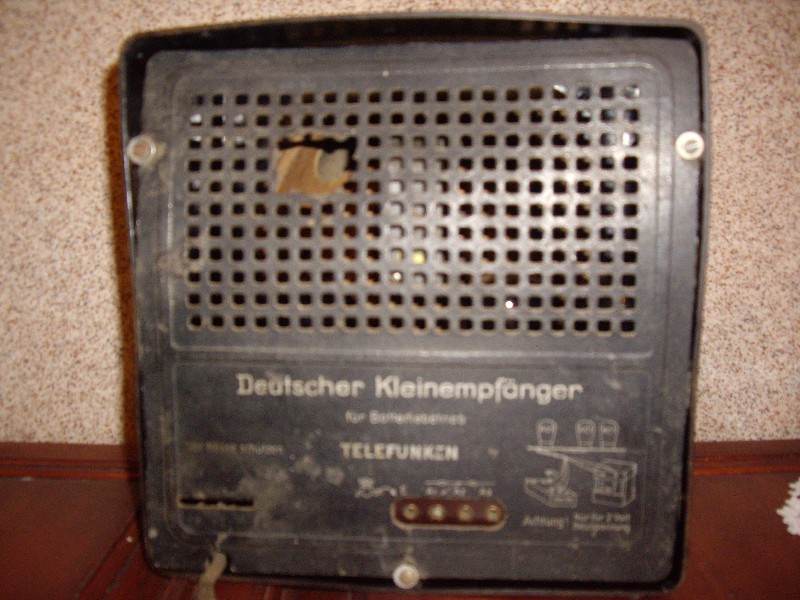

Deutscher Kleinempfänger 1938 für Batteriebetrieb DKE 38 B (DKE38B, DKE1938B)
- Manufacturer/Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year: 1939
- Principle: TRF with reaction (regenerative); 2 AF stage(s)
- Tuned circuits: 1 AM circuit(s)
- Wave bands: Broadcast (MW) and Long Wave.
- Power type and voltage: Storage and/or dry batteries / 90+2 Volt
- Loudspeaker/pwr.out: Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
- Material: Bakelite case
- Dimensions (WHD): 240 x 240 x 120 mm / 9.4 x 9.4 x 4.7 inch

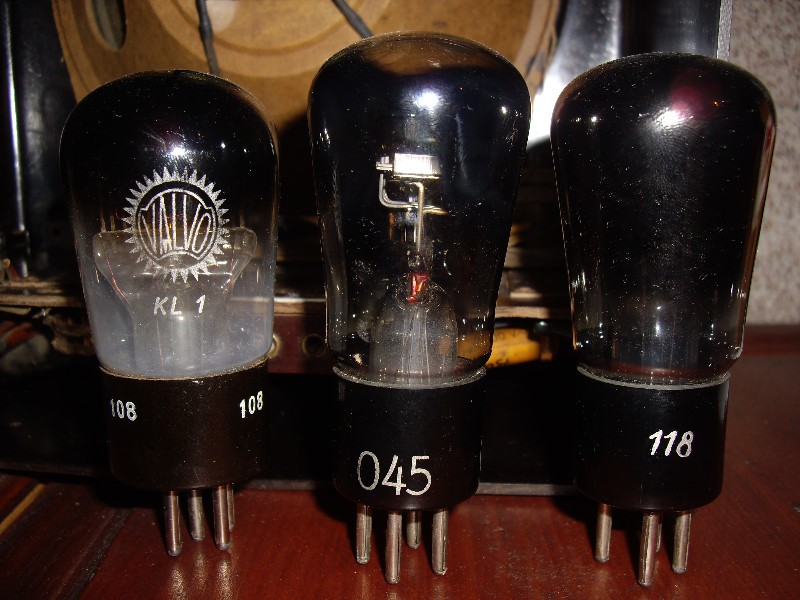

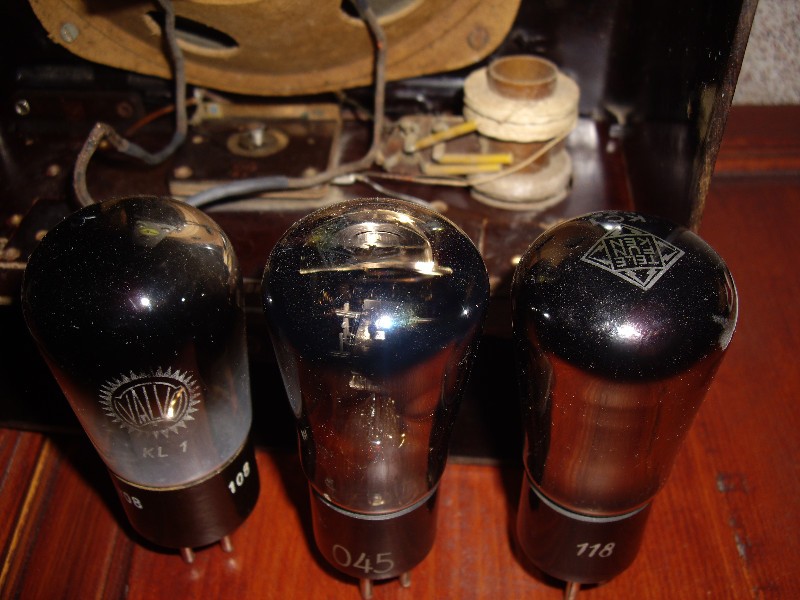

- Valves / Tubes: 3: KC1-4pin, KC1-4pin, KL1-5pin
- Net weight (2.2 lb = 1 kg): 1.6 kg / 3 lb 8.4 oz (3.524 lb)
