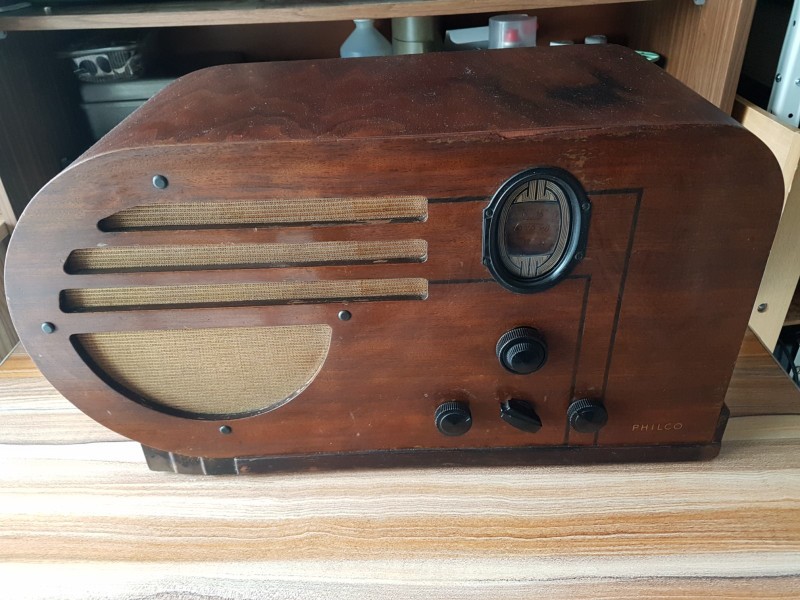

Philco 610T Big Bullet
- Year: 1936
- Manufacturer/Brand: Philco, Philadelphia Stg. Batt. Co.; USA
- Principle: Super-Heterodyne (Super in general); ZF/IF 460 kHz
- Power type and voltage: Alternating Current supply (AC) / 115 Volt
- Loudspeaker/pwr.out: Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material: Wooden case
- Shape: Tablemodel, low profile (big size).
- Dimensions (WHD): 13 x 17 x 9 inch / 330 x 432 x 229 mm
- Valves / Tubes: 5 tubes: 6A7 78 75 42 80
- Net weight (2.2 lb = 1 kg): 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale: 45.00 $
- Wave bands: Broadcast plus 2 Short Wave bands.
